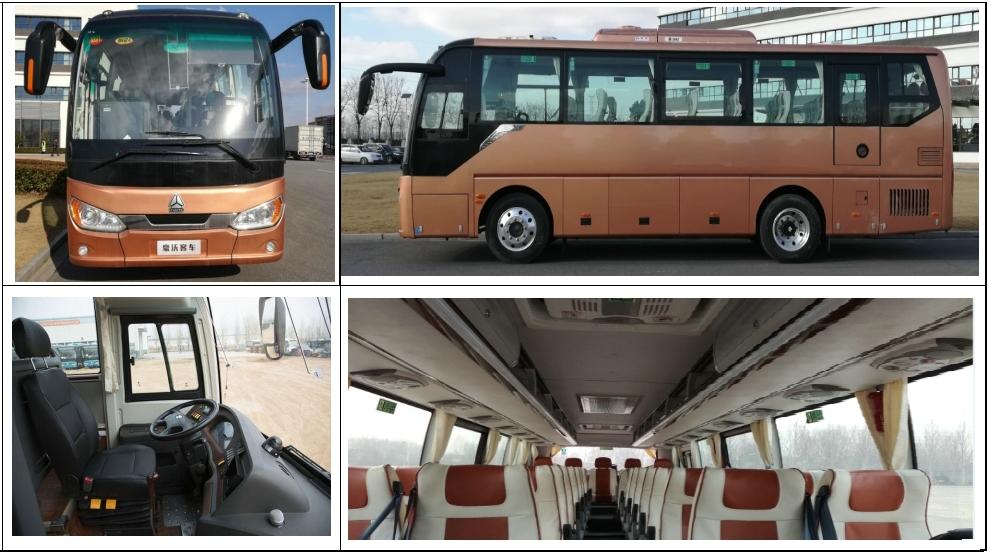

JK6907H3 HOWO BUS
| General Data | Overall length (mm) | 8995 | Engine | Model | MC07.24-30 |
| Overall width (mm) | 2430 | Maker | SINOTRUK | ||
| Overall height (mm) | 3330 | Engine location / fuel | At rear/ diesel | ||
| Axle distance (mm) | 4300 | Engine type | 6-cylinder in-line with water cooling, turbo-charging and intercooling | ||
| Front / Rear overhang (mm) | 1905/2790 | Rated output (kw/rpm) | 176/2300 | ||
| Angle of approach / departure (º) | 11/8 | Maximum torque (N.m) | 925/1200-1800 | ||
| First step (mm) | ≤380 | Displacement (ml) | 6870 | ||
| G.V.W (kg) | 12600 | Bore×stroke(mm) | 108×125 | ||
| Rated seats | 37+1 | Emission standard | Euro Ⅲ | ||
| Max. driving speed (km/h) | 100 | ||||
| Item | Basic configuration | Optional configuration | ||
| Chassis | Engine | MC07.24-30 | □ MC07.28-30 | |
| Clutch | Diaphragm-spring clutch, Ø395mm | |||
| Gearbox | 5-speedmanualgearbox（MC07.24-30） | □ 6-speedmanualgearbox（MC07.28-30） | ||
| Front axle | 5T, disc brake | |||
| Rear axle | 9T, drum brake | |||
| Suspension | Leaf spring | □ Air suspension | ||
| Steering | Integral power steering gear (domestic) | □ ZF integral power steering gear | ||
| Brakes | Air controlled dual-cycle service brakes, energy storage spring parking brakes, ABS, 150A alternator |
□ Electric eddy-current retarder □ 120A×2 alternator |
||
| Tyre | 9R22.5 | Qty.：7 |
□ Aluminum alloy wheel □ Wheel cover |
|
| Other | Oil-water separator, air dryer, clutch booster,automatic slack adjuster, brake shoes wear alarm device,three speed electromagnetic clutch, 220L oil tank |
□ Fuel line heating □ Centralized lubricating system □ 400L oil tank |
||
| Item | Basic configuration | Optional configuration | |
| Electric appliance | Battery | 180A.H×2 | □195A.H×2 |
| Instrument | CAN instrument | □ Data recorder | |
| Wiper | Opposed wiper (with washers) | ||
| Audio-visual system | MP3 |
□ Hard disc player, 17’’ fixed displayer (one) □ Hard disc player, 19’’ fixed displayer (one) □ Wireless microphone |
|
| Security monitoring system | None |
□ Reversing and getting off monitor system □ Reversing buzzer |
|
| Air conditioner | Driver fan |
□ Engine-driven A/C24000Kcal/h+air flue+double luggage rack □ A/C interior □ Double luggage rack |
|
| Warming system | Water pump + defroster |
□ Front step radiator □ 24KW heater motor+defroster+four radiators+ driver radiator |
|
| Other | Automatic fire extinguisher |
□ Air horn □ Cabin temperature alarm |
|
| Item | Basic configuration | Optional configuration | |
| Body | Frame | Integral body, three steps, concave floor | |
| Interiortrim | Molding interior trim, without luggage racks, three top lamps, reading lamp | □ Double connecting top lamps | |
| Doors | Front swing-out door, aluminum swing luggage cabin doors, emergency valve |
□ Left emergency door □ Translational luggage cabin doors |
|
| Windows / windscreen | Laminated front windshield, tempered rear windshield,closedside windows (sliding-type of the last two windows),green color |
□ Insulating glass □ Grey color |
|
| Rear-view system | Manual rear-view mirror, inside mirror |
□ Manual rear-view mirror with defrosting □ Electricrear-view mirror with defrosting |
|

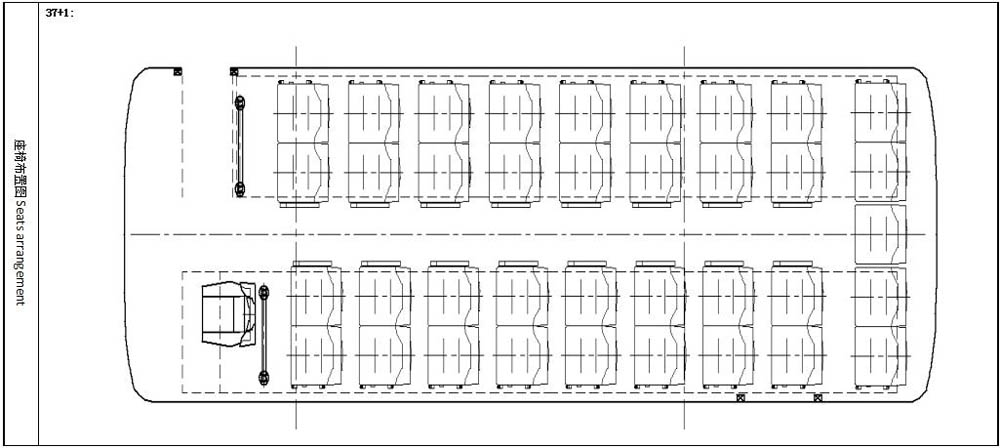

| Seats | Luxury driver seat, high back adjustable passenger seats (witharmrest,seat belts and sidesway), passenger fence |
□ Driver seat with airbags shock absorber □ with net, cup holder and footrest |
|
| Paint | Plain paint | □ Metallic paint | |
| Other | Sun visor, side window curtains, rear window curtain, electric clock, top scuttle, safety hammer, 4KG fire extinguisher (two), tool box, triangle warning sign | □ Drinking fountain | |
