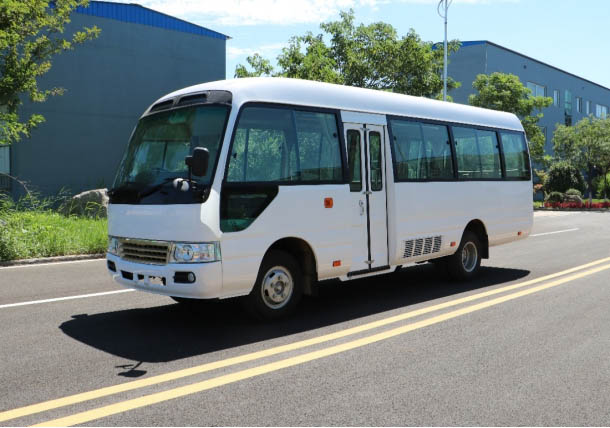

7.2m deisel bus (ISUZU Chassis ) (right standard rudder)
| Vehicle parameters | Overall dimensions(mm)（L*W*H） | 7200×2050×2705 | |
| Curb weight (Kg) | 4500 | ||
| Max. gross weight(Kg) | 5672 | ||
| Wheelbase(mm) | 3815 | ||
| Front/rear wheel track(mm) | 1680/1650 | ||
| Front/rear overhang (mm) | 1150/3235 | ||
| Seat quantity | 19+1 | ||
| Approach/departure(°) | 19/14 | ||
| Maximum Speed | 110Km/h | ||
| Engine | Model | 4KH1-TCG40 | |
| Manufacturer | ISUZU | ||
| Engine Position | Front | ||
| Emission standard | Euro IV | ||
| Rated power [kw/(PS)] | 96 | ||
| Max. torque (Nm·r/min) | 290/1500 | ||
| Displacement (L) | 2.99L | ||
| Fuel | Diesel | ||
| Chassis | Clutch | Model | Φ325mm Single piece, dry type, diaphragm spring |
| Steering machine | Model/type | hydraulic boost | |
| Transmission | Model | ISUZU MSB-5SM | |
| Axle | Model/Configuration | MSB | |
| Tire | Model/Specification | 7.00R16 14PR | |
| Suspension | Model/Configuration | Multi layered leaf spring with shock absorber Leaf suspension | |
| Brake system | Service | Driving brake: vacuum booster, hydraulic drum brake | |
| Parking | Parking brake: central drum brake of flexible shaft drawing wire | ||
| ABS | with ABS | ||
| Fuel tank | Model/Capacity | 100L | |
| Vehicle body | Passenger door |
One driver door One passenger door of electric folding door, One emergence safety door |
|
| Window |
Side window is sliding window,, F Green color, Front windscreen is laminated glass, rear windscreen is tempering glass |
||
| Seat |

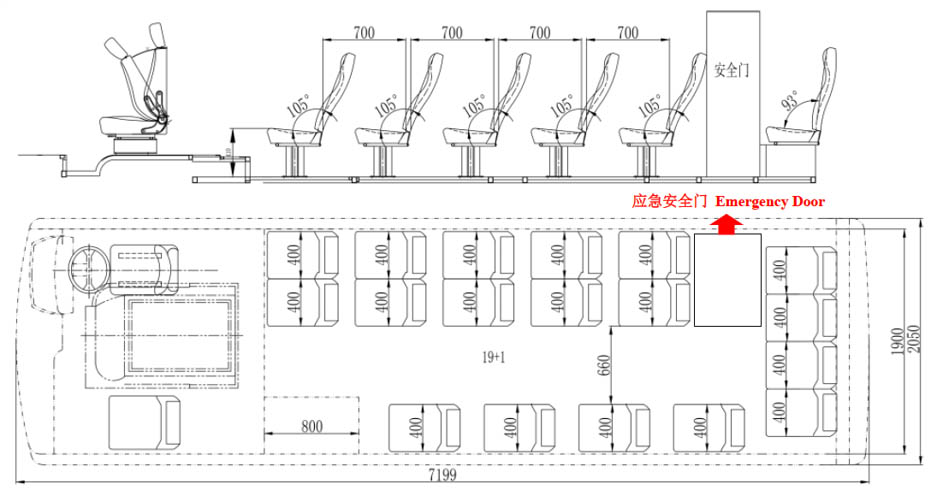

Passenger seat without handrail, Not Adjustable backrest , with two-point safety beslt. . backrest reclining angle at 105C , front to rear distance is 700mm seat matetail: PVC, beige color seat hight: 410mm, seat width: 400mm |
||
| Inside lighting |
Whole headlamp,ceiling dome light, Side marker lamp ，Rear Lamp, High brake lamp , License plate lamp . with E-MARK label. |
||
| Audio-visual system |
Radio with MP3 |
||
| AC | non-independent 14000 Kcal, inner AC | ||
| Rear-view mirror |
Manual rearview mirror. with E-MARK label |
||
| Interior decoration |
Beige Color trimming, LED Dome Light 3pcs, with Manual Safety skylight luggage rack on right side , handrail on left side |
||
| Floor | Bamboo floor，Above covered with Small squire rubber floor leather | ||
| Body painting | Ordinary paint, made in China | ||
| Other accessories | Wiper, stainless steel tube guardrail, digital clock, Safety skylight, 4 hammers, 2Kg fire extinguisher1 pc, Rear luggege room. | ||
|
|
