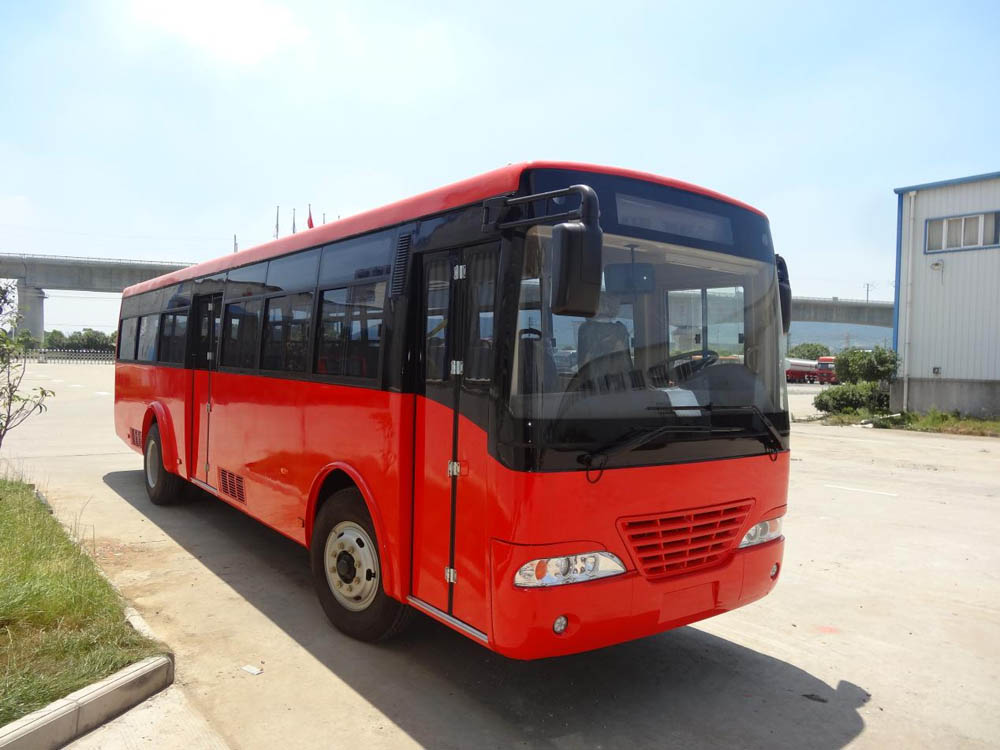

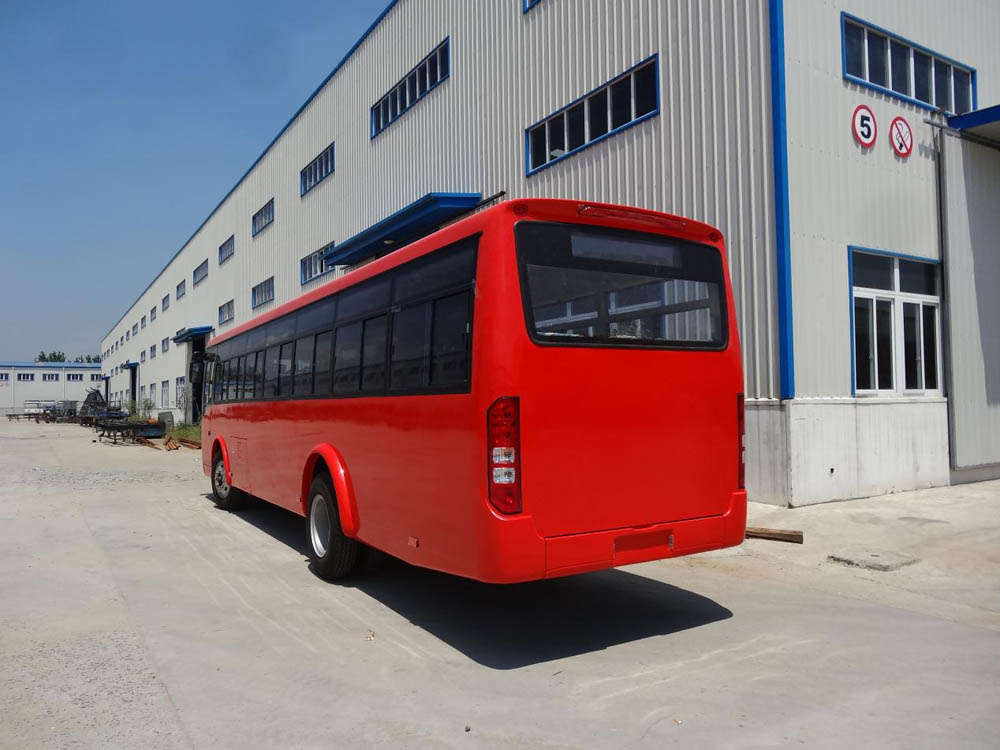

9M Bus HM6900

Main technical parameters:

1. Dimensions (mm): Length 9000 width 2480 height 3150,3350

2. Proximity angle/Departure angle (°): 13/13

3. Wheelbase (mm): 5000/5200

4. Front overhang/rear overhang (mm): 1840/2160;1840/1960

5. Engine: Jade WoodYC140-4, national three emissions

6. Qijiang160 Gearbox

7. Rated passenger (including driver) (number of seats):43

8. Hunan Axle, front 4.2T (φ400x130)/rear 8T (φ400x155) (1975/1800), speed ratio 5.29;

9. With self-adjusting arm; ABS; with gas connector

10. Tire 8.25R20-14PR (double money), with spare tire and spare tire lifter;

11. Exhaust brake; air dryer; standard secondary brake;

12. 135L Fuel tank left,

13. copper water tank; with expansion water tank;

14. An outage; a clutch booster;

15. Before 11 of the plate spring 12;

16. Power steering;

17. Air conditioning1.6Kcal
